Advantages
Save time and energy for more important things
Effortless deactivation of auto-steering
Dust, rain and moisture resistance
Suitable for tractors with open and closed cabins

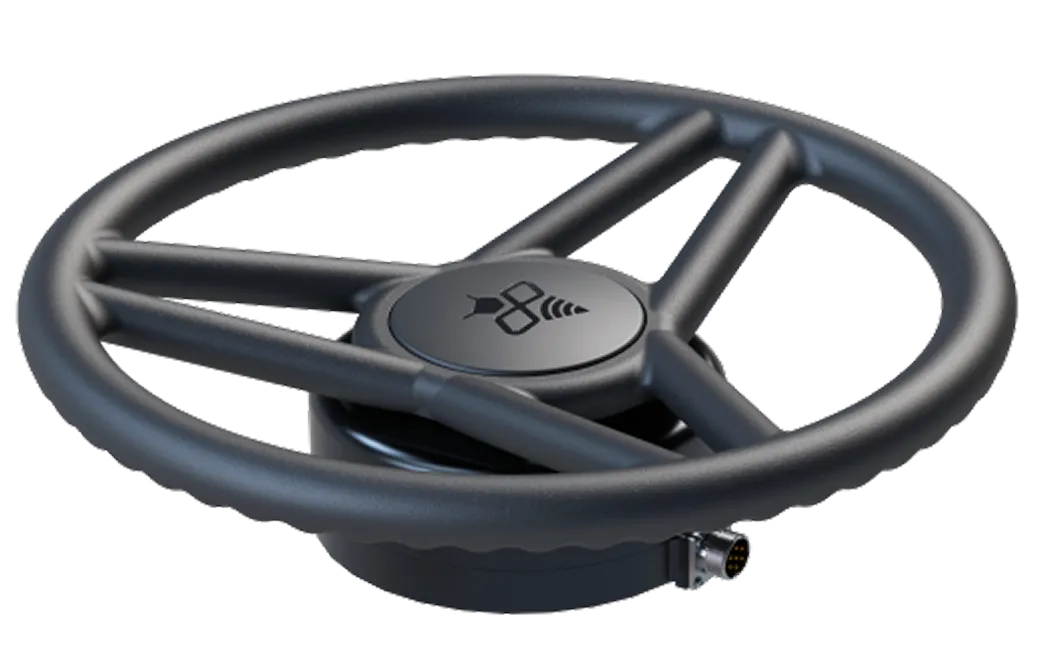

FieldBee PowerWheel
Replaceable steering wheel with an electric motor for automatic steering which replaces the original steering wheel of the tractor.Easy to install and switch between different machines.
Consists of 4 main parts:
Consists of 4 main parts:
- Steering wheel - replaceable steering wheel specially designed for tractors. Easy to install and switch between different machines.
- High torque steering wheel actuator - the motor has a high torque value and a fittable shaft adapter for installation on many tractor models. Motor has minimum mechanical parts with minimum noise level thanks to the use of Direct Drive technology. These two features allow the FieldBee PowerWheel to be compatible with most tractor models. For details see the tech specs.
- Anti-rotation bracket - part which fixates the PowerWheel to the steering wheel shaft of...
Main system features
- Working mode: Speed mode, position mode
- Autosteer working mode deactivation by manual override
- Overcurrent and overload protection
- Over-voltage and under voltage protection
- Temperature protection
- Locked-rotor and over speed protection
- Motor short circuit protection
- Fault LED indicator
PRODUCTS
Next-Level Farming for the New Season
FieldBee PowerWheel
Specification
| DC working power | +7V~32VDC |
| Continuous current | 10A |
| Maximum peak current | 20A |
| Rated torque | 7Nm |
| Peak torque | 16Nm |
| Rated speed | 80 - 100 rpm (adjustable) |
| Communication | RS232, CAN2.0 |
| Working mode | speed mode, position mode |
